Description

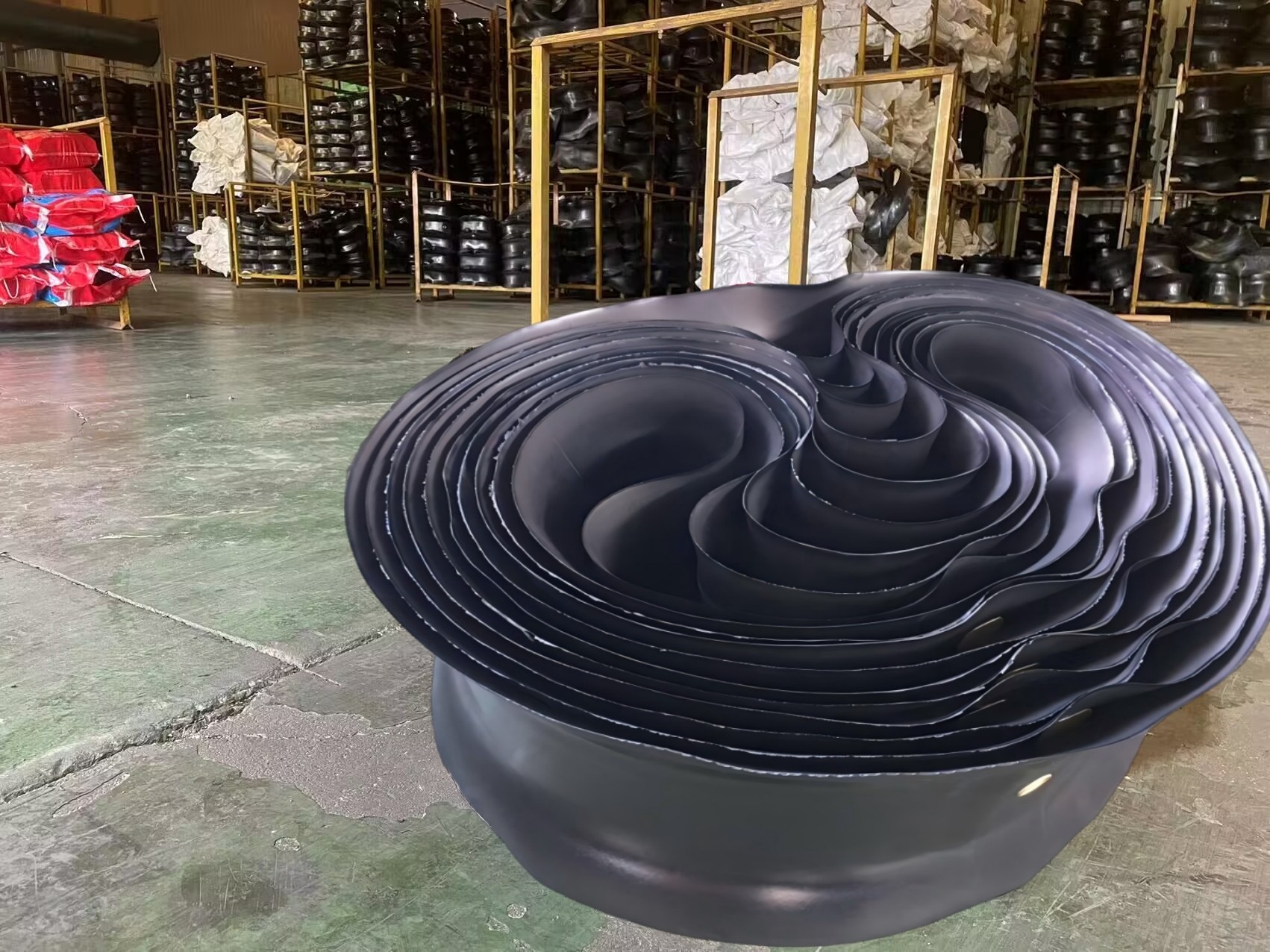

Truck Tire Flap Liner Rubber Flap 750R17 750-17
Tire Flap (liners) fit tire 750R17 750-17
| FIT TIRE SIZE | FLAP SIZE | FIT TIRE SIZE | FLAP SIZE | |
| 5.00-8 | 8-4.6 | 10.00/11.00/12.00-20 | 20-8.2 | |
| 6.00-9 | 9-4.6 | 10.00/11.00/12.00R20 | 20-8.2 | |
| 6.50/7.50-10 | 10-5.8 | 12.00-20 | 20-8.2 | |
| 7.00-12 | 12-5.7 | 12.00R20 | 20-8.2 | |
| 23X10-12 | 12-8.5 | 10.00/11.00/12.00-22 | 22-8.3 | |
| 6.50/7.00/7.50/8.25-15 | 15-7.4 | 10.00/11.00/12.00R22 | 22-8.3 | |
| 8.25/9.00-15 | 15-7.1 | 10.00/11.00/12.00-24 | 24-9.1 | |
| 9.00/10.00/11.00-15 | 15-8.3 | 10.00/11.00/12.00R24 | 24-9.1 | |
| 7.00/7.50R16 | 16-6.8 | 13.00/14.00/16.00-20 | 20-9.8 | |
| 7.00/7.50R16 | 16-6.8 | 13.00/14.00-24/25 | 24-11.1 | |
| 6.50/7.00/7.50/8.25-16 | 16-6.9 | 16.00-20/21 | 20-11.8 | |
| 8.25/9.00-16 | 16-7.1 | 16.00-24/25 | 24-11.1 | |
| 7.00/7.50-18 | 18-6.8 | 15.5/17.5-25 | 25-13.2 | |
| 6.50/7.00/7.50/8.25-20 | 20-7.8 | 18.00-25 | 25-13.2 | |
| 8.25/9.00-20 | 20-8.0 | 20.5-25 | 25-17.7 | |
| 9.00R20(20R7.0) | 20-7.0 | 23.5-25 | 25-19.5 | |
| 9.00-20(20R6.0) | 20-6.0 | 26.5-25 | 25-23.2 |
